HAND HELD TERMINALS

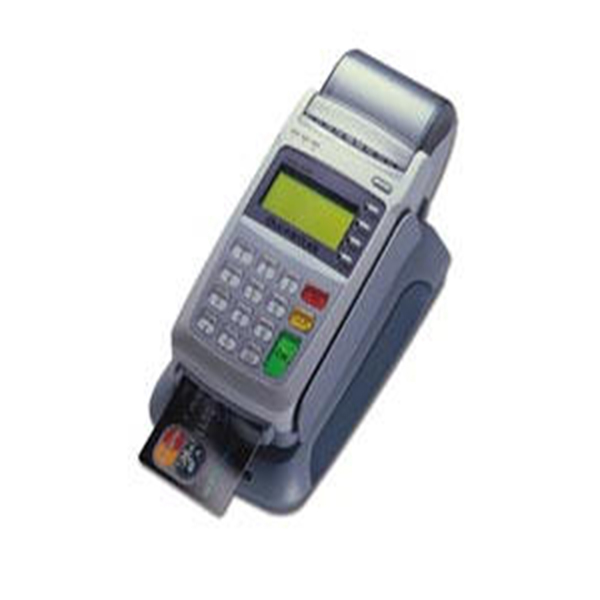

The Vega9300 is an intelligent, high-security, multi-purpose and cost-effective EDC terminal capable of offering payment and non-payment solutions. It integrates a magnetic stripe card reader, smart card reader, contactless card reader, and SAM acceptor(s) for a wide range of credit, debit and loyalty transactions. It can support the multi-communication interface, which includes RS232, RS485, Ethernet (TCP/IP) and GSM/GPRS. As the Vega9300 is designed to be portable, the communication interface can be changed without changing the handset. The Vega0300 is ready for future payment requirements, such as a built-in contactless smart card reader. To satisfy diverse demands, the Vega9300 completes multiple payments and value-added applications.
Description
| Product Features | Vega Series |
|---|---|
| Processor | 32 bits |
| Memory | 4M bytes Flash Memory (Up to 8M of Flash) 1M bytes SRAM (Up to 2M of SRAM) |
| Display | 128X64 Graph LCM with Backlight |
| Printer | Integrated fast thermal printer, easy loading paper, 2 inches width standard roll paper |
| Keypad | ¡EStandard numeric keypad, plus 1 power key with Menu Key function ¡E4 Programmable function keys ¡EKeypad with Backlight |
| Indicator | 3 LED Lights Indicator of Power, Process and Host Communication function |
| Magnetic Card Reader | Triple Track Magnetic Card Reader, Straight Swipe Bi-Direction |
| Smart Card Reader | EMV Level 1 Approved ISO 7816 1-2-3 |
| SAMs | 4 SAMs |
| RF Card | 1 Contactless Reader with ISO14443 A/B(Option) |
| Base Modem | [Vega9310] ¡EV. 32 bis Fast Connect MODEM and Support Sync HDLC¡@¡@(Option to V. 90) ¡E1 RS485 w/SDLC [Vega9320] ¡EV. 32 bis Fast Connect MODEM and Support Sync HDLC¡@¡@(Option to V. 90) ¡E10/100 Ethernet |
| RS232RS485 Ethernet GSM/GPRS | Up to 3-RS232 Ports1 RS 485 10/100 Ethernet 900/1800 or 850/1900 MHz (optional) |
| Battery | 4 NiNH Battery with Auto Charger and Protector |
| Power | 12VDC Input |
| Operating Temperature | 0~55 ¢J |
| Operating Humidity | 25~90% Non-Condensing |
| Dimensions | ¡EHandset: 210mm(L)X90mm(W)X65mm(H) ¡EBase: 170mm(L)X120mm(W)X40mm(H) |
| Weight | ¡EHandset: Approx 510g(Including Battery) ¡EBase: Approx 210g |
