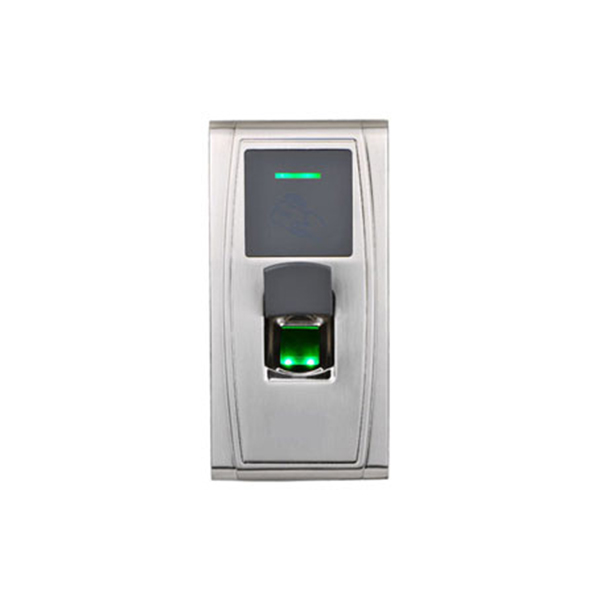

MA300 METALLIC CASING OUTDOOR ACCESS CONTROL
MA300, one of the innovative biometric fingerprint readers for access control applications. Offering unparalleled performances by adopting an advanced fingerprint algorithm for reliability, precision, and excellent matching speed.
It is metallic casing and IP65 rated which enables it to be resistant from water, dust and other outside damages.
MA300 offers the flexibility to be installed standalone or with any third party panels that support 26-bit wiegand. User can be enrolled by the administrator card when the device works in standalone mode.TCP/IP and RS485 are available so that the device can be connected easily and conveniently.
It supports Bluetooth communication, mobile phone App management, And realizes access control, user information registration, devices set up.
Description
| Fingerprint Capacity | 1,500 templates |
| ID Card Capacity | 10,000 |
| Transaction Capacity | 100,000 |
| Sensor | Optical Sensor |
| Algorithm Version | Advanced Finger V10.0 |
| Communication | RS485,TCP/IP,USB-host,Bluetooth |
| Access Control Interfaces for | 3rd party electric lock, door sensor, exit button, alarm |
| Wiegand Signal | Input & Output |
| Standard Access Control Function | RS485 Reader, Time Zone, Group, Multi-identification, Duress mode, Anti-passback |
| Optional Functions | Mifare, external USB keypad |
| Display | N/A |
| Power Supply | 12V DC |
| Operating Temperature | -10 °C- 60 °C |
| Operating Humidity | 10% -90% |
| Protection Grade | IP65 |
| Dimension(W×H×D)mm | 73×148×34.5 |
| Gross Weight | 1.15kg |
